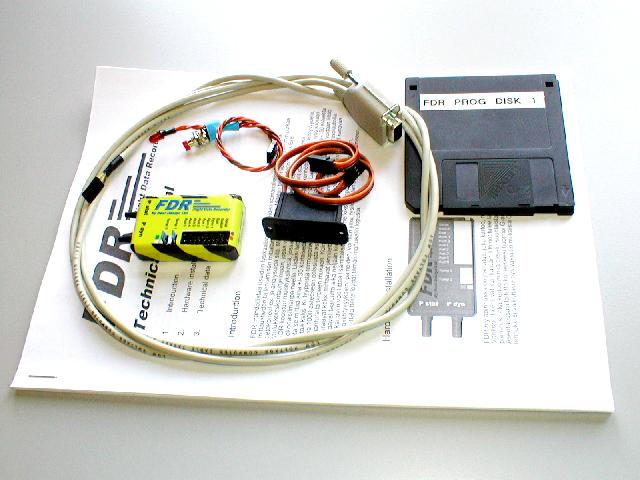

FDR package includes:
- FDR logging device
- Power switch
- K-type wire sensor 2 pcs.
- Statusled & start swich
- RS-cable
- PC-software
- Manuals
We recommend 5 cell NiMh battery pack at least 200 mAh capacity.
FDR Technical data:
| Dimensions |
35*58*16 mm |
| Weight |
22 g |
| Current consumption |
30 mA |
| Operating voltage |
5.2-10 V |
| Channels 12 bit |
8 pcs |
| Channels 8 bit |
2 pcs |
| Frequency counters |
2 pcs 10-4096 Hz |
| Max sample freq. |
25 Hz |
| Min sample freq. |
0.2 Hz |
| Max recording time |
171 h (all channels on) |
| Min recording time |
82 min (all channels on) |
Pressure measuring
| Min pressure |
700 mbar |
| Max pressure |
1350 mbar |
| Resolution |
0.16 mbar |
| Over pressure limit |
2000 mbar |
Temperature measuring
( K-type )
| Min tempperature |
-150 °C |
| Max tempperature |
1000 °C |
| Resolution |
0.3 °C |
Acceleration
| Max Acceleration |
+/- 30 G |
| Resolution |
15 mG |
|
